A DETAILED DESCRIPTION OF THE MIX COMPUTER

In this chapter, we give a detailed description of the instruction set of the MIX computer. This description considers the detailed specifications of the execution of each instruction. Much of assembly language programming is concerned with the small details of the computer organization and instruction set. Thus, it is necessary to be very familiar with the exact meaning of each instruction.

Before we can give a complete explanation of what the MIX instruction set is, we need to first look at how a program is executed by the computer. This is followed by a consideration of the common features of the execution of a large class of instructions -- the memory reference instructions. Finally, we examine the complete instruction set.

3.1 INSTRUCTION INTERPRETATION AND EXECUTION

How does the MIX computer actually execute instructions? What does it do at what time and why? To answer these questions, it is necessary to look beneath the description of the MIX computer as a computer with 4000 words of memory and nine registers, an overflow toggle, comparison indicator, and I/O devices. We know that the basic instruction execution cycle is composed of the following four steps:

  1. Fetch the next instruction.
  2. Decode the instruction.
  3. Fetch the operands (if any).
  4. Execute the instruction.
All computers do nothing more than continuously repeat this basic instruction execution cycle. If we want to be able to truly understand the operation of the MIX machine, however, we need to know more about what is done in each of the above steps, and how it happens. This requires looking at the inside of the MIX computer and seeing how it is actually put together.

Figure 3.1 gives a block diagram of the internal structure of the MIX computer. Notice that the four basic components (memory, ALU, control unit, and I/O system) are present. There are also a number of registers which we did not tell you about in our earlier description of the MIX computer. These are the internal registers and are not directly accessible by the programmer. They are registers which have been used by the computer designers to build the MIX machine and are dedicated to specific internal functions; they are not meant to be used by the programmer. In fact, there are no instructions in the instruction set of the MIX machine which would allow them to be used.


FIGURE 3.1 The internal registers of the MIX computer.

Specifically the internal registers are,

  1. MAR (memory address register) A two-byte register which holds the address of every referenced memory location.
  2. MDR (memory data register) A five-byte-plus-sign register which contains the contents of memory locations (the data) which are read from or written to the memory.
  3. P (program counter) The contents of the program counter is the address of the next (or current) instruction to be executed. The P register is two bytes, just enough to hold an address.
  4. I (instruction register) The instruction register is used to hold the instruction which is being executed (five bytes plus sign). It is used by the control unit.

The instruction execution cycle for the MIX computer is quite simple. When the machine is started, the following steps are executed over and over again, until the computer executes a halt instruction, or someone presses the STOP button on the MIX console.

  1. The first thing which must be done is to fetch the instruction to be executed. The P register has the address of the next instruction, so the contents of the P register are copied into the MAR register.
  2. Next, the memory unit reads the contents of the memory location addressed by the contents of the MAR. These contents are put into the MDR.
  3. When the read has been performed, the instruction which has been read into the MDR is copied into the I register so that it can be decoded into the control signals needed to execute the instruction.
  4. Now that the current instruction has been fetched, the contents of the P register are increased by 1 to be ready to fetch the next instruction after the current one is executed.
  5. Once the instruction has been fetched and copied into the I register and the P register incremented, the control unit can decode the instruction and start its execution.
Byte 5 of all MIX instructions is the opcode of the instruction and is examined first. Based upon the value of the opcode, the remainder of the instruction may be interpreted in different ways. For each of the different interpretations, the control unit performs different operations in order to execute the instruction.

There are two main types of instructions: those which specify an operand and those which need no operand. Instructions such as, HLT (halt the computer), NUM (convert the AX register from character code to numeric in the A register), NOP (no operation), and others need no operand. These instructions, determined by their opcode (C field, byte 5) and opcode modifier (F field, byte 4) are executed immediately, and the control unit returns to step 1 to fetch the next instruction (unless the instruction was a HLT, of course).

For operations with an operand, the operand must be determined. The operand is specified by the address field (bytes 0, 1, and 2) as modified by the I field (byte 3) of the instruction. The modification of the address field by the I field is called the effective operand calculation and is described in Section 3.2. This produces the effective operand, m. The effective operand is used in two ways. For immediate operations, jumps, and I/O instructions, the effective operand is the operand, a two-byte-plus-sign integer number. For memory reference instructions (the loading, storing, arithmetic, and comparison operations), the effective operand is the address of the operand. For these instructions, the control unit copies the effective operand into the MAR and fetches the contents of the addressed memory location into the MDR. This full-word (five bytes plus sign) quantity is then used as the operand.

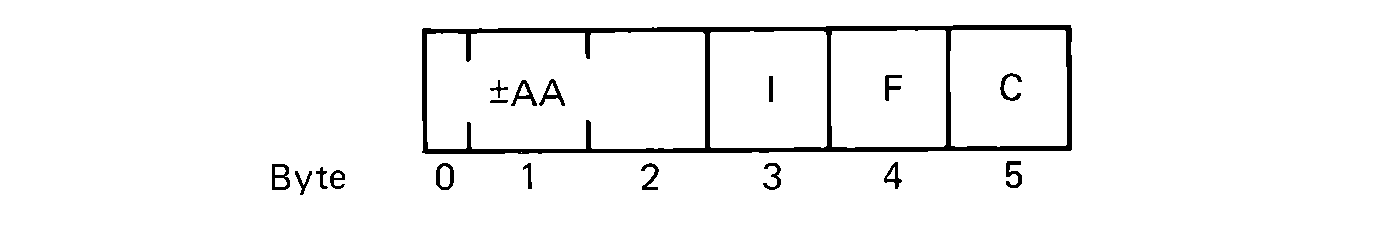

FIGURE 3.2 The MIX opcode format.

In either case, memory reference or non-memory reference, the instruction is executed once the operand is obtained. Fetching an operand from memory for a memory reference instruction means that these instructions take longer to execute than the operations which use the effective address as their operand. Once the execution is complete the control unit returns to step 1 to repeat this sequence for the next instruction.

3.2 EFFECTIVE OPERAND CALCULATION

Most of the instructions for the MIX computer specify an operand in the address field (bytes 0 through 2) of the instruction. This operand is modified according to the contents of the I field (byte 3) of the instruction. Many, but not all, instructions use the resulting operand as an address. The immediate and the shift instructions treat the operand as an integer number. However, the load, store, compare, jump, arithmetic, and (some) I/O instructions treat the operand which results from the original operand and the modification specified by byte 3 as an address, the effective address. Because these instructions are more common, the standard terminology refers to the operand as an address. (Hence, bytes 0, 1, and 2 are called the address field instead of the operand field.) Thus, although we are concerned with the calculation of the effective operand and the operand is only used as an address most of the time, we present our discussion in terms of an effective address calculation. We denote the effective operand (or effective address) by m.

The I field of an instruction determines the mode of the effective address calculation. The simplest mode is direct addressing. Direct addressing is indicated by a zero value for the I field. In this case the effective address is equal to the address given in the instruction. No modification is needed. This is the most common and useful addressing mode.

The other addressing mode of every MIX computer is an indexed addressing mode. If the value of the I field is between 1 and 6 (inclusive) then the effective address is the sum of the contents of the address field of the instruction and the contents of the index register whose number is given in the I field. Letting AA be the contents of the address field, and i be the number given in the I field, then m = AA + contents of index register i.

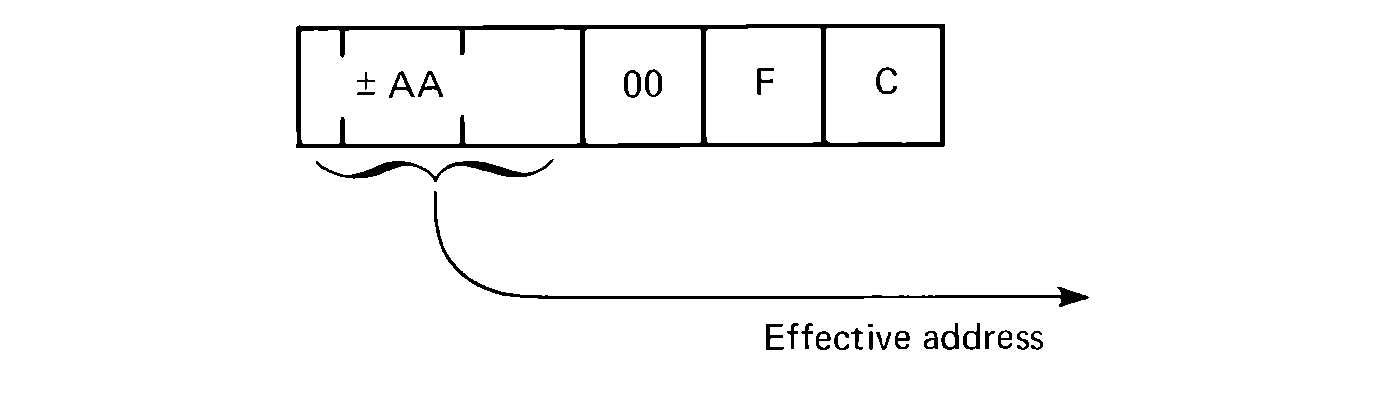

FIGURE 3.3 Direct addressing (the effective address is the address field of the instruction).

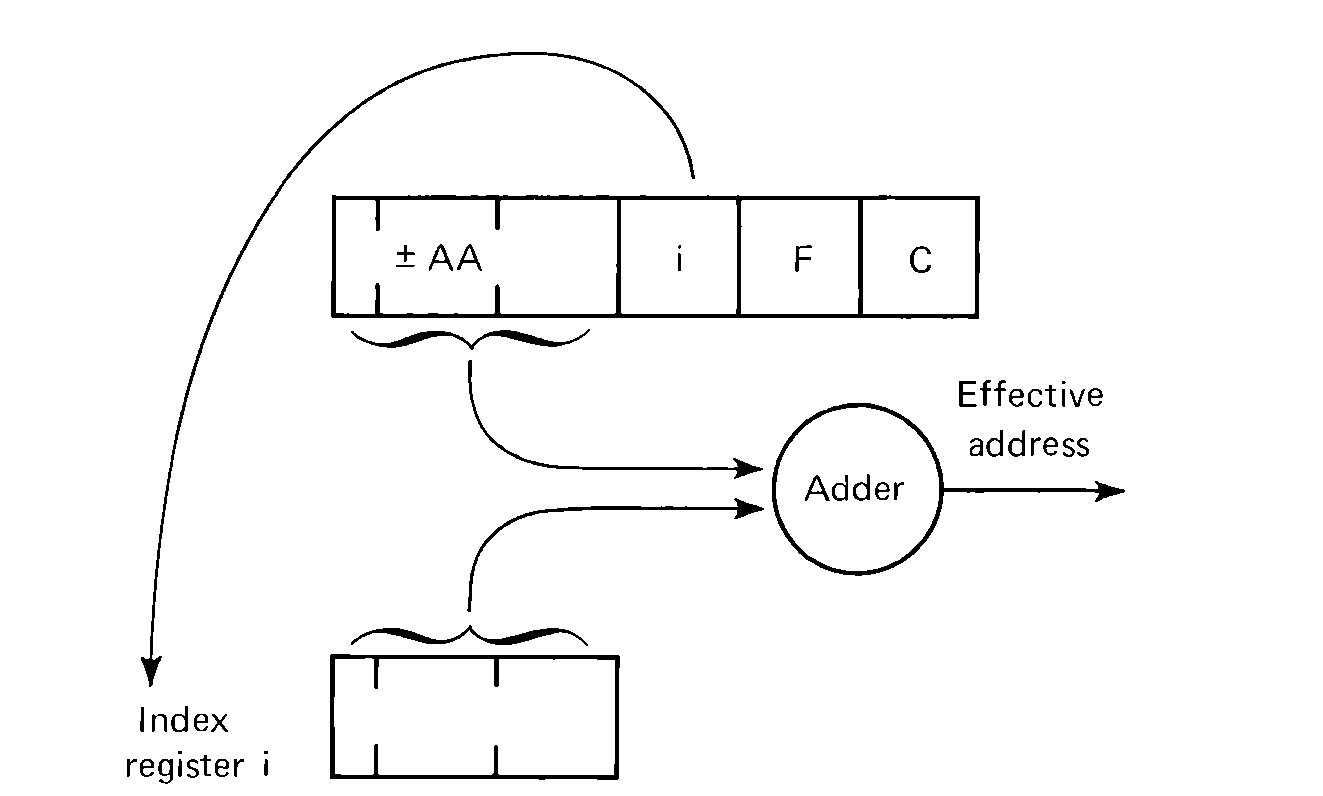

FIGURE 3.4 Indexing (the effective address is the sum of the contents of the address field of the instruction and the index register).

As an example, let the index registers have the (octal) values

I1 = +0100 I2 = +0200 I3 = -0001 I4 = +0001 I5 = -0500 I6 = +6666
Then for each of the following LDA (opcode = 10, F field = 05), instructions we have the effective address given
Instruction   Effective address
AA I F C   m
+0013 00 05 10   +0013   no indexing (direct)
+1472 00 05 10   +1472   no indexing
+1472 01 05 10   +1572   indexing by I1
+0001 02 05 10   +0201   indexing by I2
+0014 03 05 10   +0013   indexing by I3
+0000 04 05 10   +0001   indexing by I4

Notice, however, that the indexing field is one byte (six bits) in size, and we have only specified the addressing mode for the values of the index field equal to 0, 1, 2, 3, 4, 5, 6. Many owners of MIX computers have bought an option for the CPU which increases the number and kind of addressing modes. This additional unit treats the index field as a pair of octal digits: ab. Each of these two digits specifies an addressing mode. The effective address calculation is performed by first modifying the address by the addressing mode specified by a and then using this effective address as the address to be modified by the addressing mode given by b. Since we have 3 bits per octal digit, we have 8 values for each of a and b, and 64 possible combination addressing modes. The interpretation of the addressing modes for each of the octal digits of the indexing field is
Digit Mode
0 direct addressing (no modification)
1 indexing by I1
2 indexing by I2
3 indexing by I3
4 indexing by I4
5 indexing by I5
6 indexing by I6
7 indirect addressing

The first seven addressing modes have already been discussed. Indirect addressing (a = 7 or b =7) is another addressing technique which is a common addressing mode for computers. With indirect addressing, the address which we already have (initially the address field of the instruction, AA) is not the effective address (as in direct addressing) but the address of a word in memory which contains (in its address field) the effective address.

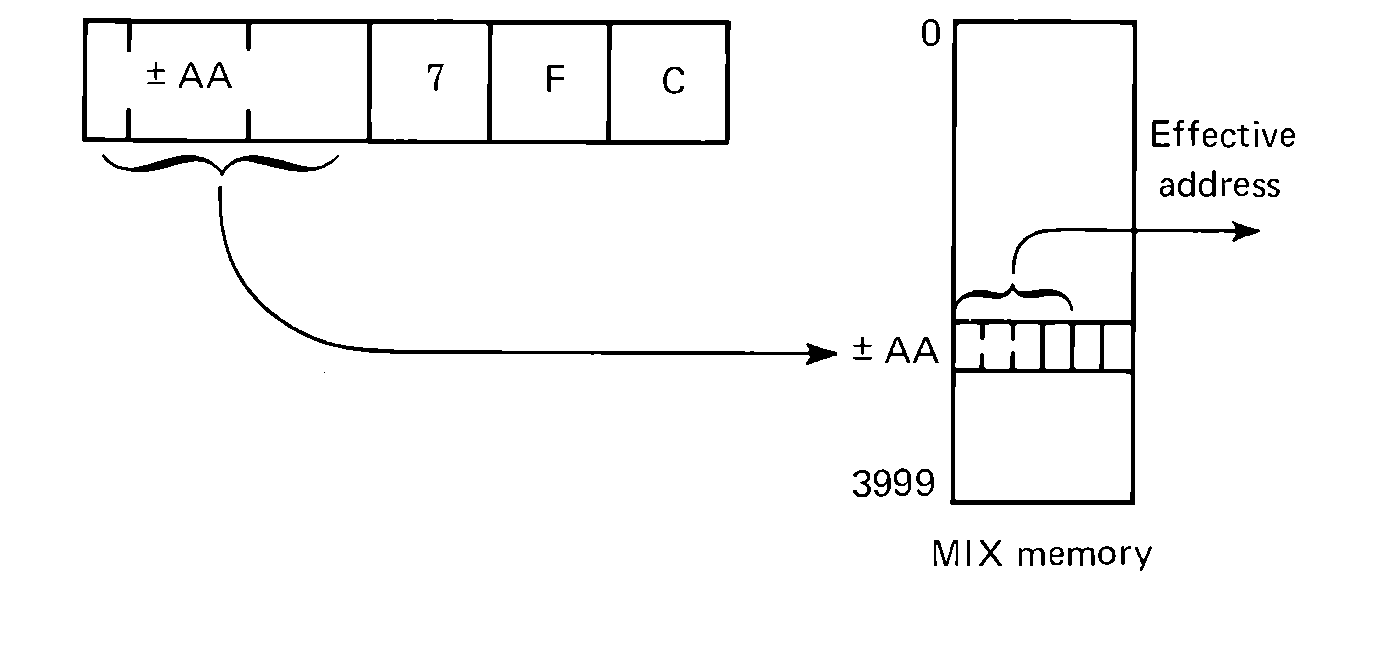

FIGURE 3.5 Indirect addressing (the effective address is the contents of the address field of the memory location addressed by the address field of the instruction).

Consider for a minute the difference between an immediate instruction and a memory reference instruction. If the address were +0100 for an immediate instruction, then the operand for the instruction is +0100. For a memory reference instruction, the operand is not +0100 but the contents of location +0100 in memory. For an indirect addressing mode, the operand is not +0100, nor is it the contents of location +0100. Rather, for indirect addressing, it is the contents of the memory location whose address is the contents of location +0100. Thus, in order for the MIX computer to execute the instruction, it requires either 0, 1, or 2 memory references:

(0) For an immediate instruction, the effective address is calculated and the instruction is executed immediately, using this number as operand.

(1) For a memory reference instruction, the effective address is calculated. This address is sent to the memory unit and the instruction is executed on the contents of the location addressed by the effective address.

(2) For a memory reference instruction with indirect addressing, the effective address is calculated first. This address is sent to the memory unit (first memory reference). The resulting word which is read from memory is not the operand but the address of the operand, so the contents of the fetched location are given back to the memory unit as an address, and this new location is read out (second memory reference). The instruction is then executed on the contents of this memory location.

The presence of two address modifier digits (a and b) in each instruction allows for three classes of effective addresses:

  1. No modification. Both a and b are zero. The effective address is the address given in the instruction.
  2. Simple modification. One of a or b is zero, but the other is non-zero. This results in either,
    1. Simple indexing (if the non-zero indicator is between 1 and 6, inclusive). In this case, the effective address is the address field of the instruction plus the contents of the specified index register.
    2. Simple indirection (if the non-zero indicator is 7). The effective address is the effective address of the location whose address is given in the instruction.
  3. Complex modification. Both a and b are non-zero. In this case, the address modification specified by a is performed first, resulting in a partially calculated effective address. This address is then modified by the address modification technique specified by b. The different combinations of indexing and indirection result in four kinds of complex address modifications:
    1. Double indexing. If 1 ≤ a ≤ 6 and 1 ≤ b ≤ 6, then the effective address is the address (given in the instruction) plus the contents of the two index registers specified by a and b. For example, if
      I1 = +0143
      I2 = +0010
      I3 = -1000
      then the following LDA instructions have the listed effective addresses:
      Instruction   Effective address
      +0040 12 05 10   +0040 + 0143 + 0010 = +0213
      +1000 32 05 10   +1000 - 1000 + 0010 = +0010
      +3000 33 05 10   +3000 - 1000 - 1000 = +1000
    2. Preindexed indirection. If 1 ≤ a ≤ 6 and b = 7, the indexing operation is performed first and then this indexed address is used for indirection.
    3. Postindexed indirection. If a = 7 and 1 ≤ b ≤ 6, then the first address modification is indirection. The contents of the location specified by the address given in the instruction is fetched as the (partial) effective address for the indirection stage. Then the contents of the index register specified by b is added to the indirectly specified address to form the effective address.
    4. Double indirection. If both a = 7 and b = 7, then the modification being specified is double indirection. Because of certain features of the MIX indirection feature (see below), this is not allowed. If an instruction attempts to use double indirection, the MIX machine will halt.

One major aspect of MIX indirect addressing has not been mentioned yet. Remember that there are 4000 memory locations in the MIX memory, addressed from 0000 to 7637. Thus, an address can be specified in two bytes. The address field of the instruction allows for two bytes plus a sign, while a word in memory is five bytes plus sign.

Which bytes of a memory word are used to specify an indirect address? There are two reasonable ways to specify a two-byte address in a five-byte memory word. One would be to use the lower two bytes (bytes 4 and 5) of the memory word, ignoring the high order bytes, or requiring them to be zero. The other method would be to interpret the memory word as if it were an instruction and use the upper two bytes (the address field of the instruction) as the indirectly specified address. This approach also makes it reasonable to allow the I field of the indirect word to modify the address field. This is the approach to indirect addressing taken by the MIX computer. The indirect address is used to fetch a word from memory. The effective address is then the result of applying the effective address calculation to this memory word. This may, of course, involve further indirection and/or indexing.

For example, assume that the (octal) contents of the following memory locations are
Location Contents
1013 +0017 00 00 00
1014 +0200 01 00 00
1015 +0000 21 00 00
1016 +1013 07 00 00
1017 -0001 17 00 00
1020 +1017 71 00 00
and the contents of I1 = +1017 and I2 = +0005. Then, for an instruction such as +1013 00 05 10, no modification is specified (a = 0, b = 0), and the effective address is +1013. If the instruction were +1013 02 05 10, then indexing by index register 2 is specified, and the effective address is +1013 + (I2) = +1013 + 0005 = 1020.

For an instruction, +1013 07 05 10, indirection has been specified (b = 7). To calculate the effective address for this instruction, we must calculate the effective address of location 1013 of memory. The effective address of 1013 is an unmodified +0017 (since no modification is specified in byte 3 of location 1013). Thus, the effective address for the instruction is +0017. For an instruction +1014 07 05 10, we indirect through location +1014. This specifies an address of +0200 indexed by register I1, so the effective address is +0200 + 1017 = 1217. An indirect reference to location 1015 results in double indexing to give an effective address of +0000 + (I2) + (I1) = +1024.

For an instruction +1016 07 05 10, we have indirection through location 1016, so the effective address is the effective address of location 1016. The effective address of location 1016 specifies another level of indirection, through location 1013, so the effective address is +0017.


FIGURE 3.6 Multiple levels of indirection (this example has three levels of indirection).

Consider the effective address calculation of the instruction +0000 17 05 10. This instruction does indexing first by I1 (a = 1). This gives a partially computed address of +0000 + (I1) = +1017. Then indirection occurs (b = 7), so we fetch location 1017 and apply the effective address calculation to it. Location 1017 specifies preindexing of -0001 by I1, and then indirection again. The partially computed address is -0001 + (I1) = +1016. Going indirect through 1016 will take us (indirectly) to 1013 giving a final effective address of +0017 after three levels of indirection and two indexing operations.

An instruction like +1013 27 05 10 will result in four levels of indirection with both preindexing and postindexing, resulting eventually in an effective address of +1036.

The effective address calculation for the MIX computer can seem quite complex. It is based on the two simple techniques of indexing and indirection, which are used in many computers. The more complex forms of the effective address calculation seldom occur in programming. Most addresses are either direct or indexed with an occasional double indexing or simple one-level indirection. The other forms of effective address calculation must be used with great care, but can be quite useful in special circumstances. It is most important that you understand the effective address calculation procedure thoroughly in order to be able to read and write good MIX programs.

3.3 PARTIAL FIELD SPECIFICATIONS

For immediate instructions, the effective address calculation produces the operand which is to be used for the instruction. For memory reference instructions, however, the effective address is only the address of the operand and the operand must now be fetched from this location in memory. The contents of the addressed location is, of course, five bytes plus sign. Sometimes it is desirable to operate not on the entire memory word, but only on a part of a word (particularly when characters are being manipulated). To allow this, the F field (byte 4) of memory reference instructions is used to give a field specification which describes which part of the addressed memory location is to be used by the memory reference instruction.

A field specification specifies two byte numbers, which are the left and right byte numbers of the field. The field is the left byte and the right byte and all bytes in between. These are encoded into one byte in the same way that the I field (byte 3) encodes both a and b, as the two octal digits of a byte. If the F field is the two octal digits LR then L is the left byte number and R is the right byte number. Since the bytes are numbered 0 through 5, we must have 0 ≤ LR ≤5 to specify a valid field. The following list gives some examples of partial fields.

F Field   Partial field specified
05   the whole word
00   the sign bit only
02   the first two bytes plus sign
15   the whole word except the sign
45   bytes 4 and 5
55   byte 5 only

To make it easier to specify partial fields, we use the colon (":") to separate the left and right byte numbers of a partial field, as in 0:5, 0:0, 0:2, 1:5, 4:5, 5:5, and L:R.

Being able to specify only a part of a word of memory can be very useful, but it requires that the description of the instructions which can use partial fields be more complex, in order to describe how the partial fields are used. There are three ways that partial fields are used.

  1. For the loading and arithmetic instructions, the partial field is treated as the low-order bytes of a complete five-byte-plus-sign word. The high-order bytes of the operand are treated as zero. If the sign byte is included in the field (L = 0), then it is used otherwise a positive sign (+) is used.
  2. For a storing instruction, the low-order bytes of the register are stored into the specified field of the word. The remaining bytes of the memory location are unchanged. If the sign byte is included, then the sign of the register is stored in the sign of the memory location.
  3. For a comparison instruction, the same specified field of both register and memory are compared.

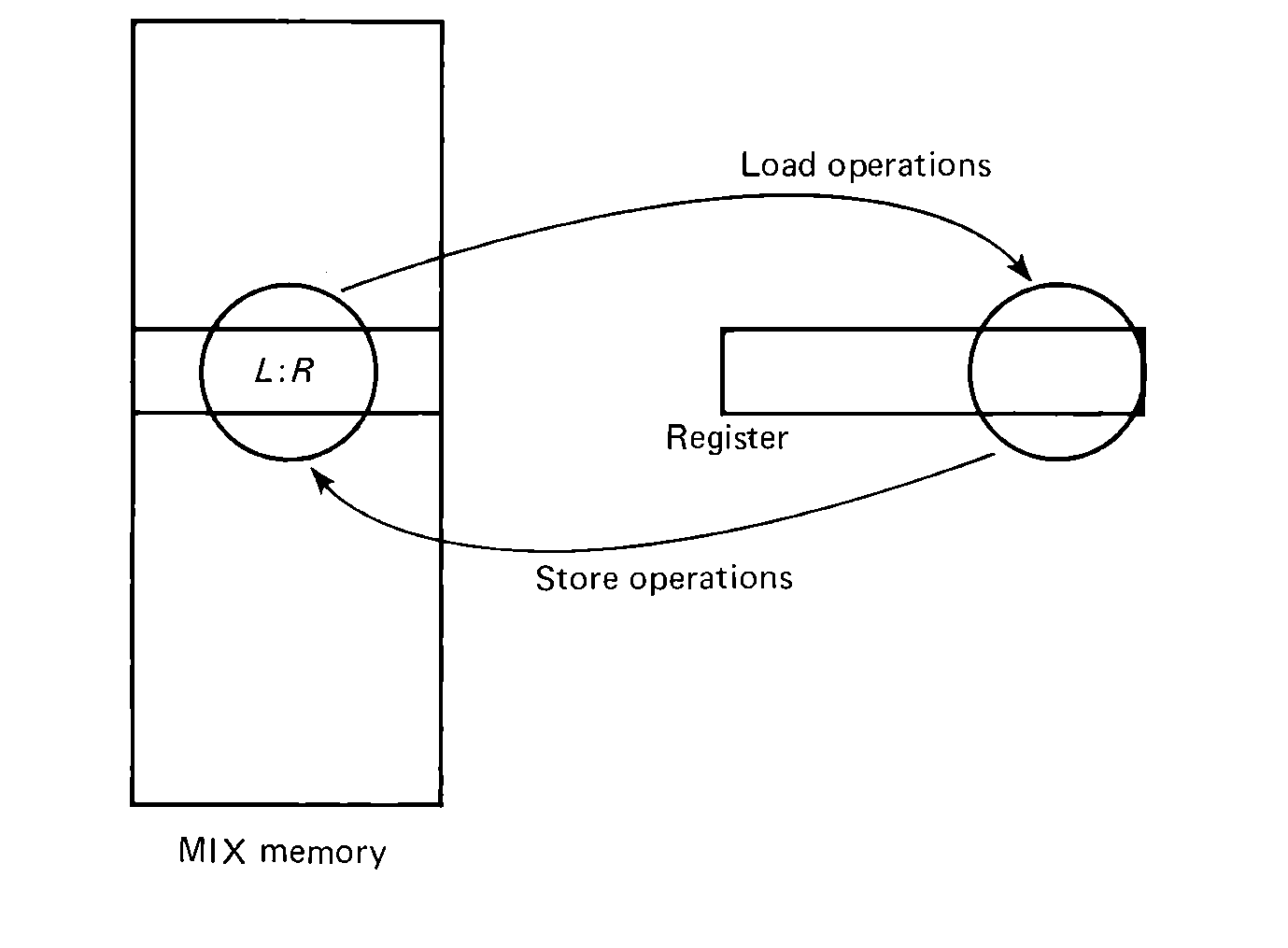

FIGURE 3.7 Partial field loading and storing (for loading, the L:R field of memory is copied into the low-order bytes of the register; for storing, the low-order bytes of the register are copied into the L:R field of memory).

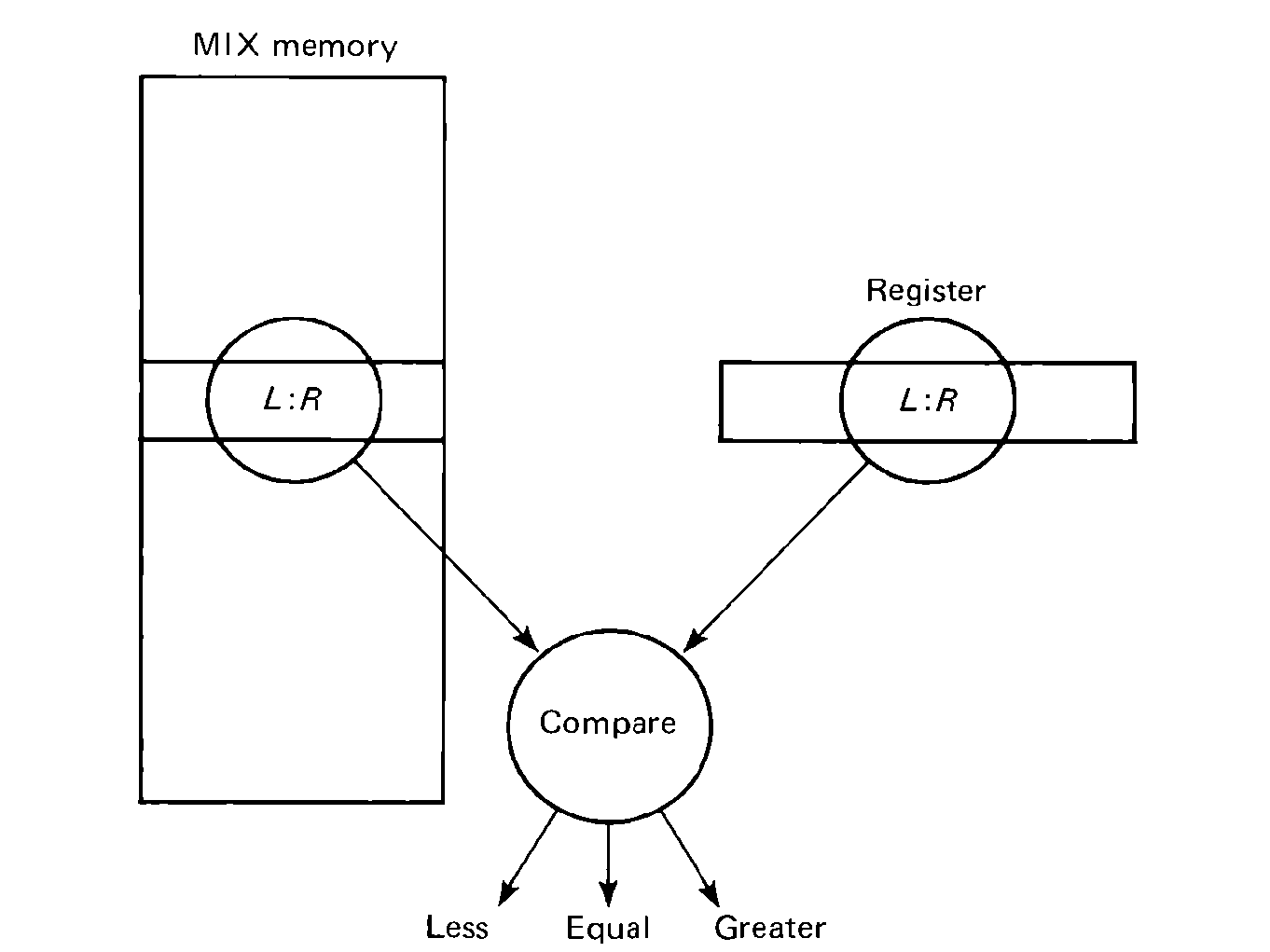

FIGURE 3.8 Comparing partial fields (the same fields of the register and memory word are compared and the comparison indicator is set).

As examples, consider a MIX memory with the contents of location 0452 = +1122334455 and 0453 = -0102030405. Then an instruction +0452 00 24 10 will load into the A register (opcode = 10) from the contents of the effective address 0452 (no modification, since byte 3 is zero). A partial field is specified by byte 4 (= 2:4), so bytes 2, 3, and 4 of location 0452 will be copied into bytes 3, 4, and 5, respectively, of the A register. Bytes 1 and 2 of A will be set to zero, and the sign byte will be set "+". Thus, the A register will be +0000223344. If we then execute the instruction +0453 00 02 30, we will store (opcode = 30) the sign plus bytes 4 and 5 of the A register into the sign and bytes 1 and 2 (partial field specification in byte 4 of instruction = 0:2) of location 0453 (the effective address resulting from bytes 0:3 of the instruction), changing location 0453 from -0102030405 to +3344030405. The A register is not changed by the store.

For non-memory reference instructions, the F field is not used to specify partial fields but is used to distinguish between instructions with the same numeric opcode in the C field. For example, an opcode of 64 specifies an immediate operation on register 4. The F field determines whether the instruction is an INC4 (F = 00), a DEC4 (F = 01), an ENT4 (F = 02), or an ENN4 (F = 03). For jump instructions, the F field determines which conditions will be tested for the jump. The F field specifies the I/O device unit number for I/O instructions.

Also, some field specifications which do not specify partial fields are used for memory reference instructions of special kinds. For example, a field of 06 is used with opcodes 01, 02, 03, and 04 (ADD, SUB, MUL, and DIV) to designate a floating point operation (FADD, FSUB, FMUL, FDIV). This allows the same opcode to be used for both integer and floating point operands, with the F field specifying which type of operand is meant.

This completes our description of the instruction execution steps for the MIX computer. We have presented the main ideas of a common instruction execution cycle, effective address calculation, and partial field specification. We now present a detailed description of the operation performed by each instruction.

3.4 LOADING OPERATORS

There are two kinds of loading operators in the MIX computer, the load (LD*) instruction and the load negative (LD*N) instruction. For both of these instructions, * specifies the register into which the new value will be loaded, and can be either A, 1, 2, 3, 4, 5, 6, or X, to refer to the appropriate register. The register is first set to zero with a positive sign. Then the bytes specified by the partial field specification in the F field are loaded into the register. In the case of the LD*N instructions, the sign is complemented (+ to -, - to +) after the loading operation. The contents of the memory location addressed by the effective address of the instruction are not changed. The previous value of the register is lost.


TABLE 3.1 Loading Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
10 * LDA load A with (m)
11 * LD1 load I1 with (m)
12 * LD2 load I2 with (m)
13 * LD3 load I3 with (m)
14 * LD4 load I4 with (m)
15 * LD5 load I5 with (m)
16 * LD6 load I6 with (m)
17 * LDX load X with (m)
20 * LDAN load A with negative of (m)
21 * LD1N load I1 with negative of (m)
22 * LD2N load I2 with negative of (m)
23 * LD3N load I3 with negative of (m)
24 * LD4N load I4 with negative of (m)
25 * LD5N load I5 with negative of (m)
26 * LD6N load I6 with negative of (m)
27 * LDXN load X with negative of (m)

The index registers are only two bytes plus sign. The two bytes correspond to bytes 4 and 5 of a five-byte MIX word; bytes 1, 2, and 3 are missing. If an attempt is made to load non-zero information into these bytes, an error exists and the MIX machine will halt. To prevent this, it is wise to use a partial field specification for loading index registers, which results in only a two-byte-plus-sign field.

Partial field specifications for load instructions may or may not include the sign byte (byte 0). If it is included in the partial field specification, the sign of the memory word is loaded into the sign of the register; if not, the sign of the register is set to "+". The remaining bytes (non-sign) are loaded into the low-order bytes of the register being loaded. So, if L is not zero, the L:R bytes of memory location m are copied to the L-R + 5:5 bytes of the destination register.

For the load negative (LD*N) instructions, the sign is complemented after the above load has been performed. Thus, if the field specification includes the sign byte of the memory word, the sign of the register will be the opposite. If the field specification does not include the sign, then the sign of the register will be "-".

3.5 STORING OPERATORS

The storing operators are almost the inverses of the loading operators. The store instructions are named ST*, where * = A, 1, 2, 3, 4, 5, 6, X specifies the register to be stored into the memory location specified by the effective address, m. The contents of the register are left unchanged.

If a partial field specification is used, only those bytes of the memory location addressed by the effective address are changed. If the sign byte is included in the partial field specification, the sign byte of the register is stored in the sign byte of the memory location. For 1 ≤ LR ≤ 5, the 5-R+L:5 bytes of the register are stored in the L:R bytes of the memory location. That is, the low order bytes of the register are stored into the partial field specified by the instruction. If a partial field specification for storing an index register includes bytes 1, 2, or 3 of the index register, zeros are stored for these bytes.


TABLE 3.2 Storing Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
30 * STA store A into location m
31 * ST1 store I1 into location m
32 * ST2 store I2 into location m
33 * ST3 store I3 into location m
34 * ST4 store I4 into location m
35 * ST5 store I5 into location m
36 * ST6 store I6 into location m
37 * STX store X into location m
40 * STJ store J register into location m
41 * STZ store zero into location m

In addition to store instructions for the arithmetic (A, X) and index registers, two special store instructions are available in the MIX instruction repertoire. STJ stores the J register into a memory location. The J register is always treated as having a positive sign, and bytes 1, 2, and 3 are zero. Partial fields can be used as with any of the other store instructions.

Since zero is an important value in computers, a special store instruction, STZ, can be used to store a (positive) zero in a memory location. Partial field specifications can be used to zero only selected bytes and to set sign bits to "+".

3.6 INTEGER ARITHMETIC INSTRUCTIONS

For ADD (and SUB), the partial field of the memory location specified by the effective address of the instruction is added to (or subtracted from) the contents of the A register. The contents of the memory location are unchanged.

If the result of an ADD or SUB instruction is too large to be stored in the A register, then overflow occurs, and the overflow toggle is turned on. The result in the A register is the lower five bytes of the result (plus the correct sign). Overflow occurs if the magnitude (either positive or negative) of the result is greater than 1,073,741,823. Since the largest numbers which could be added (or subtracted) would be 1,073,741,823 + 1,073,741,823 (or -1,073,741,823 - 1,073,741,823), the result can never be greater in magnitude than 2,147,483,646. So, only one bit is unable to fit into the A register. The value of this bit can be determined by testing the overflow toggle.

The MIX computer also provides integer multiplication and division operations. MUL multiplies the contents of the A register by the partial field contents of the memory location addressed by the effective address and places the result back in the A and X registers. The low-order five bytes are in the X register, and the high-order 5 bytes are in the A register. Both signs are set to the sign of the product.

The double register result is produced, since if two n-bit numbers are multiplied, the result can require 2 × n bits. Thus, for any two 30-bit numbers on the MIX machine, the product could be up to 60 bits long. The X register has been added to the MIX machine for this specific purpose. When a multiply instruction is executed, the contents of the A register are multiplied by the contents of the addressed memory location and the result is placed in both register A and register X. The low-order bytes are put into the X register, and the high-order bytes are put into the A register. If the product of two numbers should never be too great to store in one word of MIX memory, then the A register should always be zero, after the multiplication.


TABLE 3.3 Arithmetic Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
01 * ADD add (m) to register A
02 * SUB subtract (m) from A
03 * MUL multiply (m) by A, giving AX
04 * DIV divide (m) into AX, giving A (quotient) and X (remainder)

Division is the inverse of multiplication, and so it expects a double register dividend in register A and register X (high-order bytes in the A register; low-order bytes in the X register; sign of A is used; sign of X is ignored) and returns both an integer quotient (in the A register) and an integer remainder (in the X register). If the dividend is only one word, the A register must be set to zero, and the dividend loaded into the X register, with the proper sign in the A register.

If the quotient is more than five bytes in magnitude (or the divisor is zero), the contents of A and X are undefined and the overflow toggle is turned on. The sign of the X register is the same as the original sign of the dividend (in the A register). The sign of the quotient (in the A register) is positive if both divisor and dividend had the same sign and negative if they did not. If we let AX be the 10-byte dividend and C be the divisor, then the new contents of the A and X registers are related by

AX = A × C + X
with 0 ≤ X < C (if 0 < C), or C < X ≤ 0 (if C < 0).

3.7 FLOATING POINT ARITHMETIC INSTRUCTIONS

The MIX computer instruction set provides for five floating point arithmetic instructions (FADD, FSUB, FMUL, FDIV, and FLOT). Floating point operators are similar to the integer operations in that the A register is used as an accumulator. The overflow toggle is also set if exponent overflow or underflow occurs. Because of the nature of floating point numbers, however, multiplication and division do not result in, or require, more bits in the fractional part of the floating point, but only an adjustment in the exponent. Thus, the X register is not used for floating point instructions. The floating point hardware works best on normalized numbers, and always returns a normalized result. The operator FLOT converts an integer number in the A register into the corresponding floating point representation and leaves this floating point number in the A register.


TABLE 3.4 Floating Point Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
01 06 FADD add (m) to A as floating point numbers
02 06 FSUB subtract (m) from A as floating point numbers
03 06 FMUL floating point multiply of (m) by A; result in A
04 06 FDIV floating point divide of (m) into A; quotient in A
56 06 FCMP compare A and (m); set condition indicator
05 06 FLOT convert the integer in A to floating point representation

Most of our work in this text will deal with integer arithmetic, since (almost) all computers provide integer arithmetic operators, while floating point hardware is often not provided for the MIX machine. In fact, the floating point hardware for the MIX machine is not provided with the basic MIX 1009 computer but is an option available at extra cost. The instruction set has been defined with floating point operators included, however. If these instructions are included in a program which is run on a MIX computer without the floating point hardware option, they are treated as illegal instructions and will cause the MIX machine to halt.

3.8 COMPARISON OPERATORS

The comparison operators, CMP*, allow * to specify any of the eight registers A, 1, 2, 3, 4, 5, 6, X to be compared against the partial field in the memory location specified by the effective address. The same bytes of the register and memory are always compared. Thus, a CMPA with field specification 1:3 will compare bytes 1:3 of the A register to bytes 1:3 of memory. The values of any other bytes in memory or the register are not important. If the sign bit is not included, a positive sign is used.

The register is compared to memory and the comparison indicator is set to either GREATER, EQUAL, or LESS as,
GREATER   The register is greater than the memory location
EQUAL   The register is equal to the memory location
LESS   The register is less than the memory location
Remember that positive zero is equal to negative zero. Thus, a comparison with partial field 0:0 will always result in an EQUAL comparison indicator. Since bytes 1, 2, and 3 of all index registers are zero, using a field specification of 0:0, 0:1, 0:2, or 0:3 allows these bytes of memory to be compared with zero, to determine the positive, zero, or negative nature of memory.


TABLE 3.5 Comparison Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
70 L:R CMPA compare A and (m), set comparison indicator
71 L:R CMP1 compare I1 and (m), set comparison indicator
72 L:R CMP2 compare I2 and (m), set comparison indicator
73 L:R CMP3 compare I3 and (m), set comparison indicator
74 L:R CMP4 compare I4 and (m), set comparison indicator
75 L:R CMP5 compare I5 and (m), set comparison indicator
76 L:R CMP6 compare I6 and (m), set comparison indicator
77 L:R CMPX compare X and (m), set comparison indicator

3.9 JUMPS

The comparison operators are used to set the comparison indicator. The results of a comparison can be used to affect the flow of control in a program by a jump. Jump instructions will change the value of the program counter to the effective address if the test condition is satisfied. The following jump instructions test the current value of the comparison indicator.

JG   Jump if comparison indicator is GREATER
JE   Jump if comparison indicator is EQUAL
JL   Jump if comparison indicator is LESS
JLE   Jump if comparison indicator is LESS or EQUAL
JNE   Jump if comparison indicator is LESS or GREATER
JGE   Jump if comparison indicator is GREATER or EQUAL
These instructions do not change the value of the comparison indicator.

TABLE 3.6 Jump Instructions for the MIX Computer. The * in the last six jump instructions can be replaced by either A, X, 1, 2, 3, 4, 5, or 6, giving 48 of these types of jump instructions.
Opcode Field Mnemonic Instruction
47 00 JMP jump to m
47 01 JSJ jump to m (but do not change register J)
47 02 JOV jump to m if overflow on, turn overflow off
47 03 JNOV jump to m if overflow off, turn overflow off anyway
47 04 JL jump to m if comparison indicator is less
47 05 JE jump to m if comparison indicator is equal
47 06 JG jump to m if comparison indicator is greater
47 07 JGE jump to m if comparison indicator is greater or equal
47 10 JNE jump to m if comparison indicator is not equal
47 11 JLE jump to m if comparison indicator is less or equal
5* 00 J*N jump to m if * is negative
5* 01 J*Z jump to m if * is zero
5* 02 J*P jump to m if * is positive
5* 03 J*NN jump to m if * is non-negative
5* 04 J*NZ jump to m if * is non-zero
5* 05 J*NP jump to m if * is non-positive

In addition, programs can test the state of the A register, X register, or index registers directly and transfer control without the use of a comparison instruction by the following jumps, where * may be A, 1, 2, 3, 4, 5, 6, or X to specify the register being tested.
J*N   Jump if register * is negative (but not negative zero)
J*Z   Jump if register * is zero (positive zero or negative zero)
J*P   Jump if register * is positive (but not positive zero)
J*NN   Jump if register * is non-negative (positive or zero)
J*NZ   Jump if register * is non-zero (positive or negative)
J*NP   Jump if register * is non-positive (zero or negative)

In all these tests, negative zero and positive zero are zero, and are not considered to be positive or negative numbers.

JOV and JNOV will transfer control to the effective address if the overflow toggle is on (overflow) or off (no overflow), respectively. In either case, for both of these instructions, the overflow toggle is turned off after the instruction is executed.

JMP is an unconditional jump. It always transfers control to the effective address.

In all these cases, the J register is always set to the value of the program counter before the program counter is set to the effective address if the condition is satisfied and the jump occurs. (If the jump does not occur, both the J and P registers are unchanged.) Since the program counter is already advanced to point to the next instruction, the J register will always contain the address of the instruction which follows the most recent successful jump.

In certain cases this may not be desired. The JSJ instruction is an unconditional jump, but the value of the J register is not changed.

3.10 IMMEDIATE OPERATORS

The load, store, arithmetic, comparison and jump instructions all treat the effective address as an address of a location in memory. The immediate operators do not treat the effective address as an address but as a signed integer. This signed integer can be entered (placed, loaded) into a register (ENT*), added to a register (INC*), subtracted from a register (DEC*), or its negative entered into a register (ENN*). In any of these instructions, the register involved can be A, X, or any of the index registers.

The ENT* and ENN* instructions are directly analogous to the LD* and LD*N instructions allowing any register to be loaded with a small constant (in the range -4095 to +4095) directly from the instruction without needing to load from memory. Bytes 1 to 3 are always zero after an enter or enter negative instruction. The increment and decrement are similar to ADD and SUB but can affect any of the eight central registers by the addition or subtraction of a small constant (-4095 to +4095) without fetching it from memory. Overflow may occur and will cause the overflow toggle to be set, in the case of the A or X register. The index registers cannot be set outside the range of -4095 to +4095 (two bytes plus sign). An attempt to increment or decrement an index register outside this range is an error and will halt the computer.


TABLE 3.7 Immediate Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
60 00 INCA increment A by m
60 01 DECA decrement A by m
60 02 ENTA enter m into A
60 03 ENNA enter negative of m into A
61 00 INC1 increment I1 by m
61 01 DEC1 decrement I1 by m
61 02 ENT1 enter m into I1
61 03 ENN1 enter negative of m into I1
62 00 INC2 increment I2 by m
62 01 DEC2 decrement I2 by m
62 02 ENT2 enter m into I2
62 03 ENN2 enter negative of m into I2
63 00 INC3 increment I3 by m
63 01 DEC3 decrement I3 by m
63 02 ENT3 enter m into I3
63 03 ENN3 enter negative of m into I3
64 00 INC4 increment I4 by m
64 01 DEC4 decrement I4 by m
64 02 ENT4 enter m into I4
64 03 ENN4 enter negative of m into I4
65 00 INC5 increment I5 by m
65 01 DEC5 decrement I5 by m
65 02 ENT5 enter m into I5
65 03 ENN5 enter negative of m into I5
66 00 INC6 increment I6 by m
66 01 DEC6 decrement I6 by m
66 02 ENT6 enter m into I6
66 03 ENN6 enter negative of m into I6
67 00 INCX increment X by m
67 01 DECX decrement X by m
67 02 ENTX enter m into X
67 03 ENNX enter negative of m into X

3.11 INPUT/OUTPUT INSTRUCTIONS

The input/output system for the MIX machine is quite simple and uses only three instructions (IN, OUT, IOC). Byte 4 of the instruction specifies the device which is being used with the instruction.

The IN instruction starts the input of information from an input device. The address given as the operand of the instruction is the address of the first location of a group of contiguous memory words into which information from the device will be read. Each device always reads a fixed amount of information. Each of these items is called a record. For example, a record for a card reader is one card, or 80 characters. At 5 characters per word (one character per byte), a card reader record is 16 words long. The record length is 16 words. The record length for tape, disk, and drum units is 100 words.

When an IN instruction is executed, the device (specified in byte 4) is notified that it should read one record and put it in memory, starting at the memory location given by the effective address, m.

Most I/O devices are very slow relative to the central processing unit (CPU). The fastest card reader still takes about 50 milliseconds to read a card, while the CPU takes on the order of microseconds to execute an instruction. Thus, the IN instruction only starts to read the card and then it continues to the next instruction. The device will become busy for as long as it takes to input a record and then will again become ready (idle), waiting for the next IN instruction. Before the CPU can use the information which is being read in, it must be certain that the IN instruction which started the reading is complete. This will happen when the device becomes ready (not busy) again. To test this, two jump instructions exist. JBUS (jump if device is busy) will jump if the device (whose device number is in byte 4) is busy. If the device is not busy, execution continues to the next instruction. The JRED (jump if ready) will jump if the device is ready, that is, not doing anything now and ready to perform an I/O operation if so instructed. Both of these instructions will change the J register if the jump occurs; otherwise, execution continues at the next instruction.


TABLE 3.8 Input/Output Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
42 N JBUS jump to location m if unit N is busy
43 N IOC issue I/O control signal to unit N
44 N IN start input transfer from unit N
45 N OUT start output transfer from unit N
46 N JRED jump to location m if unit N is ready

The OUT instruction is very similar to the IN. The device is requested to begin outputting information from the block of memory beginning at the memory location specified by the effective address. As with the IN instruction, the amount of information which is transferred is always exactly one record, the length of a record depending on the device. The line printer, for example, has 120 characters per line and a record length therefore of 24 words. The card punch has a record of 16 words.

Also, as with the IN instruction, the transfer of information caused by the OUT instruction is only started by the OUT instruction. It cannot be considered complete until a JBUS or JRED instruction indicates that the device is ready for another instruction. This is true with one exception. For both the IN and OUT instructions, if an I/O instruction occurs for a busy device (busy because of a previous I/O instruction which is not yet complete), then the CPU waits until the previous operation is complete before starting the new I/O operation and going on to the next instruction.

The IOC (Input/Output Control) instruction is provided in MIX to allow different I/O devices to be controlled. Each I/O device is unique in how it operates and although the basic functions which they perform are those of Input and Output, some devices can also do other functions. The IOC instruction instructs the I/O device to begin one of these additional functions. If the device is busy, the CPU waits until it is ready before executing the instruction and continuing. The effective address is a parameter to the device.

The greatest use of IOC comes with magnetic tapes. The IOC command is used to position a tape. The effective address, m, specifies how. If m = 0, the tape is rewound. If m > 0, the tape skips forward m records; if m < 0 then the tape skips backwards -m records (or to the beginning of the tape, whichever comes first). For other devices, the effect of the IOC command depends on the device.

3.12 SHIFT INSTRUCTIONS

Six shift instructions are provided to shift information in the A and X registers. Three shift instructions shift left, and three shift right. The effective address specifies the number of bytes to shift. SLA and SRA are end-off shifts which affect only the A register, while SLAX and SRAX shift the A and X registers as one large 10-byte double register. (A is the high-order 5 bytes; X is the low-order 5 bytes.) Zeros are shifted in from the left (for a SRA or SRAX) or from the right (for an SLA or SLAX), since these are end-off shifts. The SRC and SLC shift the A and X registers (again as a double register) circularly with the bytes which are shifted off one end being shifted back in at the other end. The signs of the A and X registers are not changed by any shift instruction.


TABLE 3.9 Shift Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
06 00 SLA shift A m bytes left, end-off
06 01 SRA shift A m bytes right, end-off
06 02 SLAX shift AX m bytes left, end-off
06 03 SRAX shift AX m bytes right, end-off
06 04 SLC shift AX m bytes left, circular
06 05 SRC shift AX m bytes right, circular

3.13 MISCELLANEOUS COMMANDS

A number of commands do not fit easily into the categories of instructions presented above. These miscellaneous commands perform various important tasks.

The HLT instruction stops the computer. The computer can be restarted only by pushing the BEGIN button on the MIX console.

NOP is an instruction which does nothing. It is similar to a CONTINUE statement in Fortran.

MOVE is a very complicated but useful instruction. It copies the contents of a block of memory locations into another block of memory locations, effecting a memory-to-memory transfer capability. Byte 4 specifies the number of words to move, while the effective address specifies the address from which the contents should be copied. Index register 1 contains the address where the contents should be copied to. The copy is done one word at a time, and I1 is increased as the copy is executed, so that at the end of the move, I1 has been increased by the number of words moved. Words are moved one at a time, and the blocks of words being copied to and from can overlap.

The input/output system has many devices which treat information as alphabetic characters, not as numeric quantities, while the CPU operates only on numeric data, of course. To simplify the conversion between binary and character code, two conversion instructions, NUM and CHAR, are included in the MIX instruction set. The NUM operator converts the contents of the A and X register, considered as one large 10-byte register (A is high-order; X is low order), from a 10-character character code representation of an integer number (right justified, zero filled) to the binary representation of that number, and puts the numeric representation into the A register. The X register and the sign bytes of both registers remain unchanged. Each byte of the A and X register is the character code for one digit of the number. The digit specified by a byte is the remainder of the byte divided by 10. Thus, 00, 10, 20, …, 60 all are converted to the digit 0; 01, 11, 21, …, 61 convert to the digit 1; and 09, 19, 29, …, 59 convert to 9. Since the largest number which can be stored in one word is 1,073,741,823, there are (ten-character) numbers which cannot be converted to binary, and overflow results in these cases.


TABLE 3.10 Miscellaneous Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
05 00 NUM 10-byte decimal in AX converted to binary in A
05 01 CHAR A is converted to 10-byte decimal characters in AX
05 02 HLT halt the MIX machine
00 00 NOP no operation
07 N MOVE move N words starting from m to (I1), add N to I1

Conversion in the other direction, from numeric binary to character code is performed by the CHAR instruction. When the CHAR instruction is executed, the contents of the A register are converted from numeric binary into a 10 digit (decimal) character code (with leading zeros if necessary). The high-order 5 characters are put into the A register, and the low-order five characters are put into the X register. The signs of the A and X register are unchanged.

For both the NUM and the CHAR instructions, the effective address (bytes 0:3) of the instruction is ignored.

3.14 BINARY INSTRUCTIONS

As an option (at extra cost), purchasers of the binary MIX 1009B computer can have added to their instruction set several special instructions specifically designed for a binary machine. These instructions are only for binary computers and treat a MIX word not as 5 bytes plus sign, but as a word of 30 bits plus sign.

SRB and SLB shift the A and X register, treated as a double register, right or left the number of bits specified by the effective address. A shift left of one bit is equivalent to multiplying by two; a shift left by two bits, multiplying by four; and so on. These shifts are end-off, with zeros shifted in.


TABLE 3.11 Binary Instructions for the MIX Computer
Opcode Field Mnemonic Instruction
01 07 ORR inclusive-OR of (m) with A
02 07 XOR exclusive-OR of (m) with A
03 07 AND logical AND (m) into A
06 06 SLB shift AX m bits left, end-off
06 07 SRB shift AX m bits right, end-off
50 06 JAE jump to m if A is even
50 07 JAO jump to m if A is odd
57 06 JXE jump to m if X is even
57 07 JXO jump to m if X is odd

The AND, ORR, and XOR operations are called boolean instructions. They perform the "logical", or Boolean, operations on the A register and the contents of the memory location addressed by the effective address. These operations are those of "and", "or", and "exclusive-OR". They are applied bitwise; so, for an AND instruction bit 0 of the A register is ANDed with bit 0 of memory and the result is put in bit 0 of the A register; bit 1 of the A register is ANDed with bit 1 of memory and put in bit 1 of the A register; and so on. The AND, ORR, and XOR functions on each of the four possible operand pairs (one from the A register, and the other from memory) are
Operand 1 Operand 2 AND ORR XOR
0 0 0 0 0
0 1 0 1 1
1 0 0 1 1
1 1 1 1 0

3.15 INSTRUCTION EXECUTION TIMES

One important property of a computer program is how long it takes to execute. This is determined to a large extent by the algorithm which the program uses, but also by which instructions it uses. Since arithmetic unit and control unit circuitry is electronic, it can operate at very high speeds, and so the time it takes to execute an instruction is determined mainly by how many memory references are made. The immediate, jump, NOP, NUM, and CHAR instructions all take one time unit, since only the instruction need be fetched from memory. The memory reference instructions (load, store, arithmetic, and compare instructions) need two memory references (one for the instruction and one for the operand), and so take two time units. MUL and DIV instructions are an exception, since they are so complex; MUL takes 10 time units and DIV takes 12. Shift instructions take two time units, even though they only reference memory once. The MOVE instruction requires 2 × n + 1 memory references to move n words, and so takes 2 × n + 1 time units (one for the instruction fetch, and one to load and one to store each of the n words).


TABLE 3.12 Execution Times for the Instructions of the MIX Computer
Instructions   Time
All load, store, compare, and shift instructions:   2 units
The ADD and SUB arithmetic operations:   2 units
The MUL arithmetic operation:   10 units
The DIV arithmetic operation:   12 units
The MOVE operation, to MOVE n words in memory:   n + 1 units
All other instructions:   1 unit

The IN, OUT, and IOC instructions only take one unit plus any time they must wait because of a busy device. This extra time is called the interlock time and is often on the order of thousands of time units.

The actual length of a time unit varies according to the technology used to build the MIX computer. Old MIX machines may have time units of 3 or 4 microseconds, while the newer models, using semiconductor memory, have time units of 500 to 800 nanoseconds. Since we wish to discuss all MIX machines, we discuss all execution timings in terms of the memory cycle time of the MIX machine, which we call one time unit.

3.16 SUMMARY

The MIX computer is a small general purpose computer whose design has been influenced by a number of contemporary computers. It has 4000 words of memory, with each memory location being composed of 5 bytes plus a sign. Registers include the A and X registers (five bytes plus sign), six index registers (two bytes plus sign), the J register (two bytes), overflow toggle (ON/OFF) and comparison indicator (GREATER/EQUAL/LESS). Instructions allow loading and storing registers, addition, subtraction, multiplication, division, shifts, immediate operations, compares, jumps, input/output, conversion between (decimal) character code and numeric binary, and a few miscellaneous commands. The operands for memory reference instructions may be partial fields of a memory location. The effective address may be given in the instruction with no modification, indexing, double indexing, indirection, preindexed indirection, or postindexed indirection. Binary MIX machines can be equipped with special binary instructions.

The MIX machine was originally defined by Knuth in the first volume of The Art of Computer Programming, Knuth (1968), and repeated in the second volume, Knuth (1969). A short paperback, entitled MIX, was published in 1970 to serve as a reference for the MIX system. This was a reprint of the defining pages of Knuth (1968). There may be a locally prepared manual or report which describes your particular MIX computer system; check with your instructor or computation center.

EXERCISES

  1. Why does the MIX machine need the X register?
  2. What are the contents of the A and X registers after a multiply? After a divide?
  3. Why does it take longer to execute a load instruction than an enter instruction?
  4. What is the difference between a memory reference instruction and an immediate instruction? Describe the instruction execution cycle for each on the MIX machine.
  5. Describe the effective address calculation procedure without indirection,
  6. How does (or doesn't) an increment of n differ from a decrement of -n? Why would both instructions be provided?
  7. Write a single machine language instruction to do each of the following operations. Assume that your instruction will go in location 2734 (octal).
    1. Put 10 (decimal) into index register I5.
    2. Set the A register to zero.
    3. Subtract the contents of I3 from the A register.
    4. Put the sum of index registers I1 and I2 into I2.
    5. Put the address of the current instruction into the A register.
    6. Rewind tape unit 1.
  8. What is double indexing? Give a MIX machine language instruction which uses double indexing by I1 and I2.
  9. Most computers have a NOP (no operation) instruction. Why? Discuss its possible uses, if any. Can you think of any other instructions which have no more effect on the computer but add one to the program counter?
  10. Appendices C and D list 159 different MIX instructions. How many bits are needed to represent 159 different things? How does MIX get by with only a six-bit opcode field?
  11. For a load, store, and compare instruction with a partial field specification of L:R, which bytes of the register and which bytes of the memory location are affected and how?
  12. Why are partial fields not allowed with immediate instructions?
  13. Is the MOVE instruction necessary, or could its function be done with an appropriate combination of other instructions?
  14. Give the instruction execution times for the MIX instruction set. If the MOVE instruction only moves n words, why does it take more than n time units?
